HT2 Race Evolution Team Kit 2010

The HT2 Race Evolution Team Kit 2009 has been improved and further optimised in many parts for the 2010 season. The reliability and precision, which is an important factor in competition racing, has been further enhanced by use of lighter and stronger materials and the aerodynamics of the vehicle have been improved.

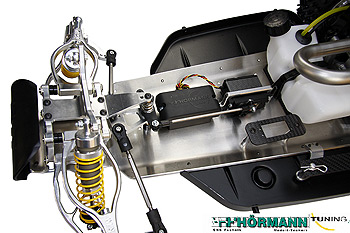

A shock absorber bridge with a new contour and M5 attachment bolts are now used on the front axle, as well as a lower control arm with swivel joints. The A and B supports and connection piece round off the front axle design. The upper control arm has been made narrower on the wheel side, so that a tighter turning radius can be achieved.

An extremely rigid bottom plate was already successfully tested during the 2009 season, giving the HT2-TK10 more strength and stability.

Further highlights include the double rear spoiler, a newly designed RC box, and the connecting element between the rear axle and gear box.

The impressive features of the HT2 Race Evolution Team Kit 2010 were reached with precise construction, superior attention to detail, and the use of even higher quality materials. The durability and stability are continuously being developed thanks to numerous test drives by the Hörmann Team.

The parts and their materials in detail:

    Aluminium Parts:
  • angled chassis plate
  • motor quick hitches
  • axle supports
  • wider control arms
  • steering stub axles
  • shock absorber bridge
  • shock absorbers (hot anodised)
  • stop pins
  • servosaver bottom section
  • connecting piece for A + B axle support
  • load washer for plastic gear
  • engine flange
  • gearbox flange
  • engine braking plate
  • differential housing
  • differential side panels
  • rear underframe
    Steel Parts:
  • stainless steel suspension pins
  • steel ball for steering linkage
  • tie rods
  • tempered gears
  • clutch bell
  • stainless steel exhaust manifold
  • stainless steel muffler
  • drive shafts
  • ball drive
  • full floating axle for ball drive
  • steel wheel drivers
    Plastic Parts:
  • spoiler made from special plastic, very flexible
  • spoiler holder side panels
  • front ram bumper
  • side bowl
  • servosaver bottom section
  • plastic steering joints
  • main gear made from delrin
  • fuel tank
  • protective collars for the ball drive
  • receiver box
  • rims
  • accumulator retaining plate made from carbon fibre
  • carbon fibre servo plate
    Optional Tuning:
  • tuning chassis plate (5mm aluminium)
  • carbon fibre bracing for bottom plate
  • hydraulic brakes front / rear axle
  • carbon fibre disc brakes
  • spoiler fastening for rubber spoiler
  • steel wheel drivers 9.5mm with pins
  • tie rod retainer
  • retainer for personal transponder

-> up

Manufacturers suggested retail price:
€ 1.799,00 incl. VAT (construction set, without engine)

-> Setup Sheet TK10 - PDF
